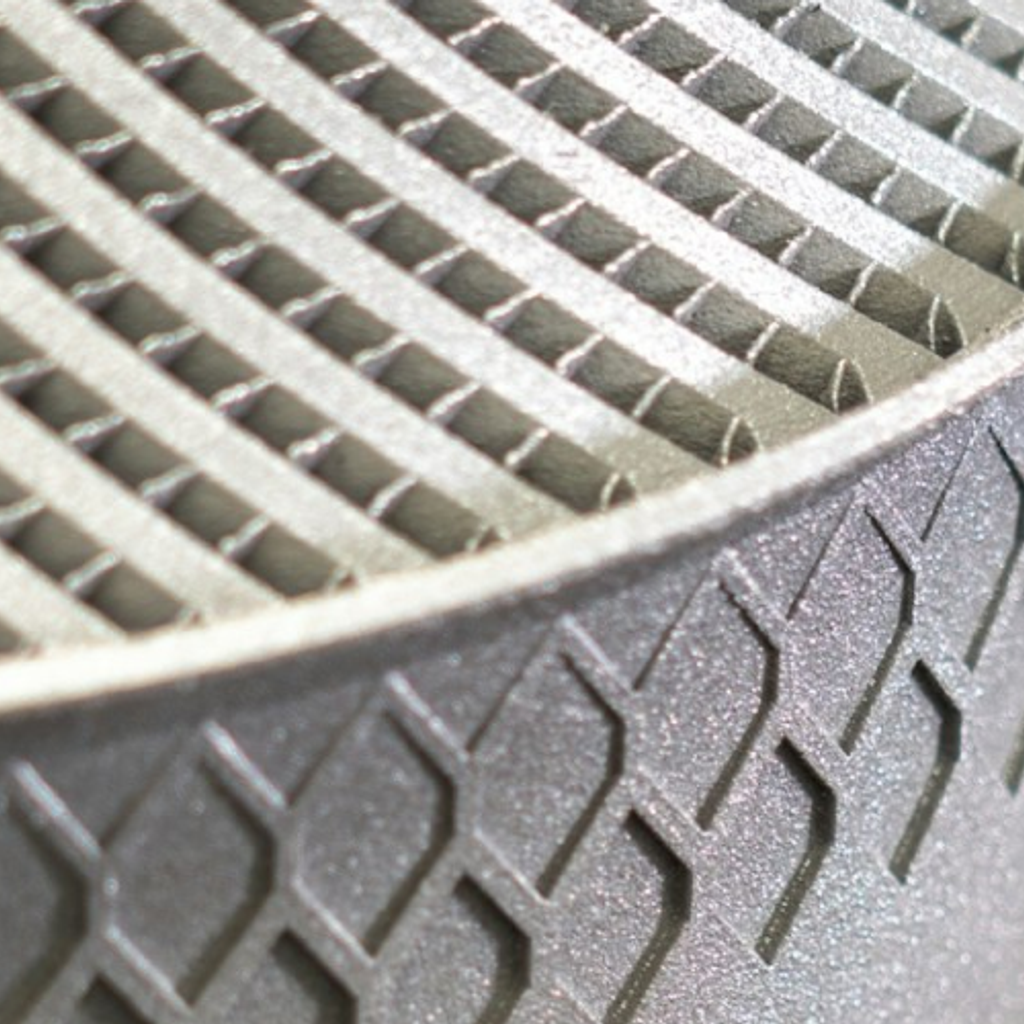

Ultra-compact annular recuperator for microturbine system

Traditionally, recuperators used in microturbine systems have been manufactured using conventional diffusion bonding techniques. While effective, these methods often result in bulky designs and complex assembly processes, limiting both packaging efficiency and overall system performance.

To address these challenges, we developed an additively manufactured recuperator that offers a more compact and efficient solution. The goal was to significantly reduce the package envelope, cost, and improve the overall efficiency of the microturbine system.

Traditional recuperators are typically designed in a box-style configuration, which requires a significant amount of space. This bulky design limits flexibility in microturbine systems, where compactness is critical for optimal performance. Additionally, the long ducting required to connect the recuperator to other components increases the system's footprint and adds complexity to the overall design.

Traditional manufacturing methods impose material limitations that restrict the temperature capabilities of recuperators. While high-temperature materials are desirable to enhance efficiency, traditional manufacturing processes often lead to compromises in material selection. This inability to push high-temperature boundaries results in suboptimal thermal performance.

Poor design in traditional recuperators can lead to uneven thermal distribution, causing significant thermal stresses during operation. These stresses arise when different parts of the recuperator experience varying temperatures, resulting in expansion and contraction at different rates. Over time, this mismatch creates mechanical strain, which can lead to:

These thermal stresses, if not properly addressed in the design phase, significantly increase the risk of recuperator failure, leading to costly repairs, downtime, and reduced system reliability.

In traditional designs, ducting and recuperator surfaces often need to be insulated to minimize heat loss. However, insulating components at high temperatures presents additional challenges:

Some of these challenges stem from manufacturing limitations and the multi-step processes required to produce the finished part.

A key focus of our design approach to address the above challenges was to create a compact recuperator with integration potential for MGT components while remaining cost-competitive through reduced build times. We developed an annular recuperator and collaborated with Renishaw to manufacture it using their cutting-edge TEMPUS technology on the RenAM 500 series of metal powder bed fusion (PBF) systems. TEMPUS, a revolutionary scanning algorithm developed by Renishaw, significantly boosts productivity without compromising part quality. By enabling the laser to fire simultaneously with the recoater movement, TEMPUS can reduce build times by up to 50%, depending on the part's geometry.

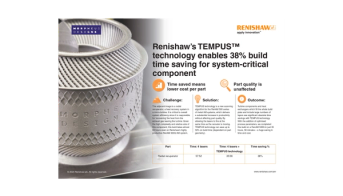

In this specific case study, the use of TEMPUS technology resulted in a 38% reduction in build time compared to a standard process setting without TEMPUS. The integrated design of the recuperator also contributed to enhanced system performance by:

The work has demonstrated a significant reduction in both build time and size. The next step is to manufacture the part using a high-temperature nickel alloy and conduct full thermal and pressure performance testing.
